Low-profile, windshield-curved roof light bar for Hummer EV with reduced wind noise, unobstructed factory cab clearance lights, and long-range driving beam performance with selectable amber or white clearance lighting.

Part Number: 6923-023 (Now In Stock)

✓ 22,200 Raw Lumens ✓ 50" Curved Bar ✓ Selectable Amber/White ✓ Low-Profile Brackets ✓ IP69 ✓ 50° Driving Beam

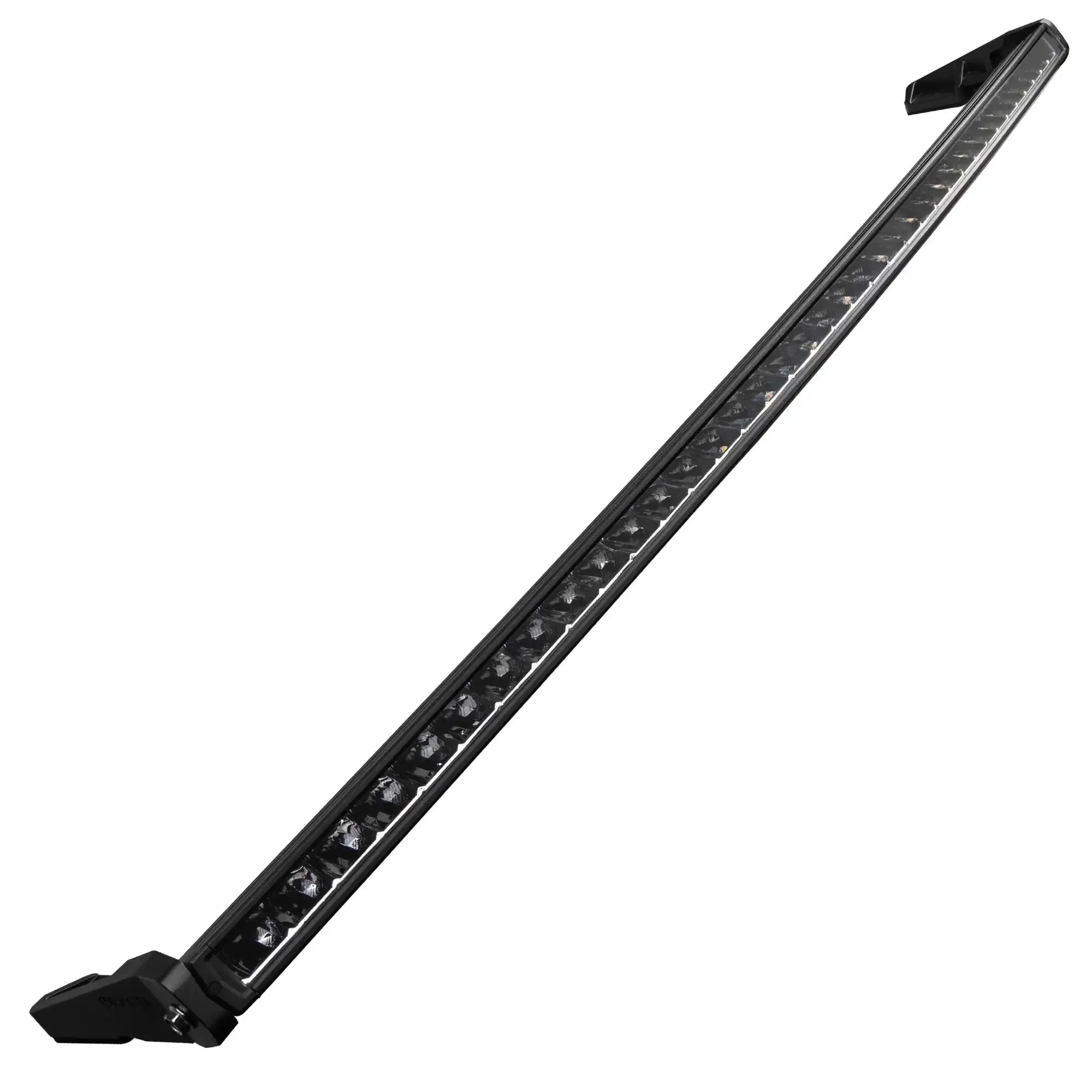

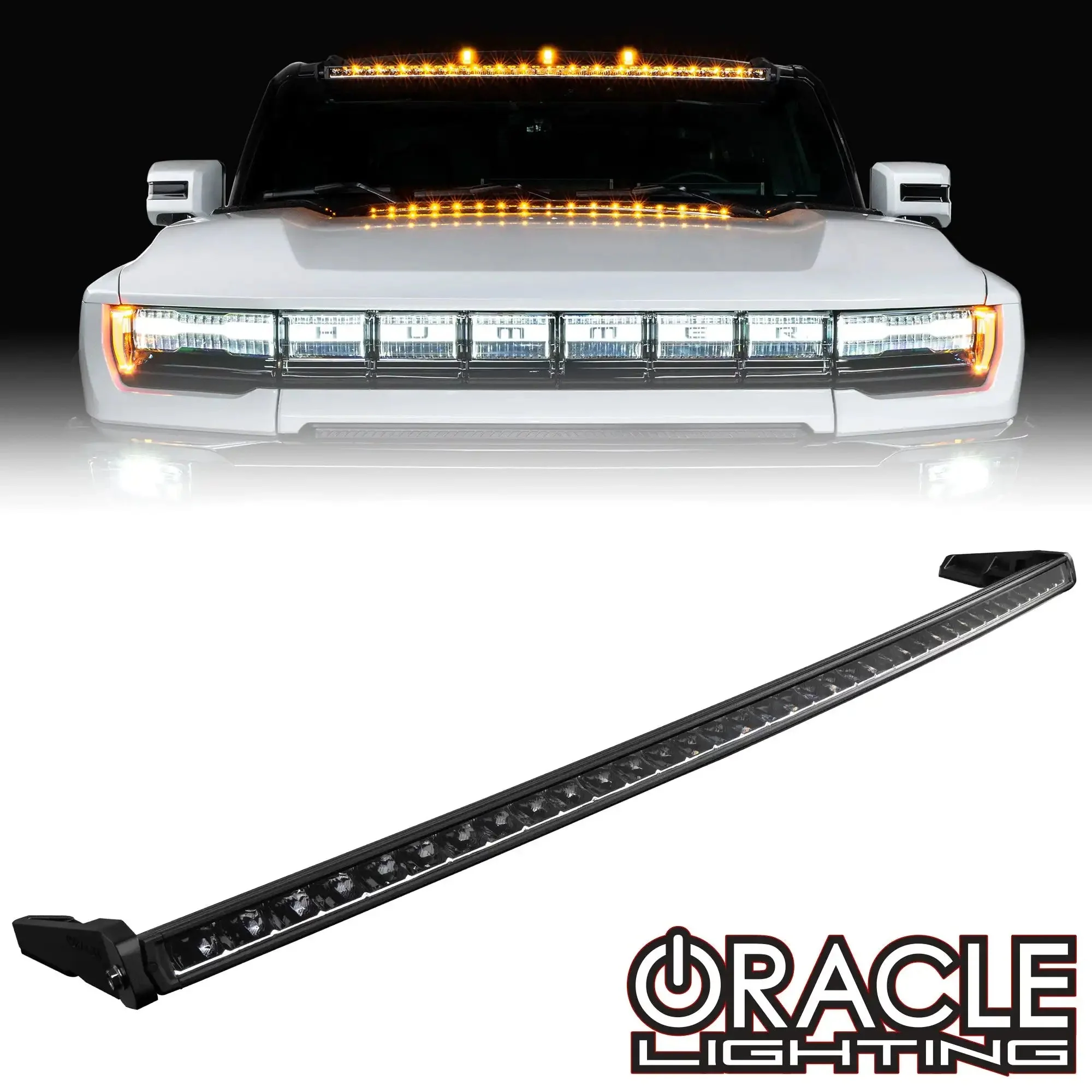

Hummer EV Roof Mounted LED Light Bar Render

Overview ▼

The ORACLE LED Light Bar for the Hummer EV features a unique low-profile design that helps reduce wind noise and does not block factory cab clearance lights. CAD-designed brackets are engineered specifically for this application for a straightforward DIY-friendly install.

Designed to match the curvature of the Hummer windshield, this system stands apart from generic options with application-specific fitment, clean styling, and strong performance-delivering up to 22,200 raw lumens with long-range projection.

The multifunction design includes selectable amber or white clearance lights. These can be wired to an Aux switch, parking lights, DRL circuit, or left disconnected if you do not want to use the clearance feature.

The low-profile setup also provides a quieter and more aerodynamic installation than traditional roof bar configurations and does not interfere with hardtop removal.

Important: As with any roof-mounted light bar setup, high-powered car washes with overhead brushes should be avoided.

Bracket Specifications ▼

MaterialCast Aluminum

FinishBlack Powder Coat

FitmentHummer EV

BaseRubberized Base Gaskets

Light Bar Features ▼

36 × 7W LED main light
Selectable amber or white clearance lights
Precision reflector-facing technology
Under / over voltage and reverse polarity protection
Electronic Thermal Management
Innovative patent-pending design
Designed & engineered in the USA
LED lifespan 50,000+ hours

Performance (Driving Beam) ▼

Raw Lumens22,200 lm

Effective Lumens18,800 lm

Total Wattage252W

Total Amp Draw16A @ 12V DC

Beam Angle50° Driving Beam

Max Projection1 Lux @ 460m

Color Temperature5500K-6000K

Optic Note: Reflector-facing technology is designed to optimize usable output and visibility from the individual high-power emitters.

Materials & Ingress Protection ▼

Outer HousingPolycarbonate

Lamp Housing6030 Aluminum

ReflectorPlated Polycarbonate

LensLexan Polycarbonate

FinishPolyester Powder Coat

BreathersStainless Steel Anti-Fog Breather Valves

ConnectorsMolded IP68 Waterproof Connectors

Ingress ProtectionIP69

What's Included ▼

(1) 2022-2025 Hummer EV 50" Roof Mount Curved Light Bar
(2) Mounting Brackets
Mounting Hardware & Weather Gasket

Install & Wiring ▼

Install Guide

Installation: Includes mounting hardware and mounts to factory roof rack mounting positions.

Wiring: Can be connected to factory Aux switches, though this may require extending 16AWG cables. If you do not have factory Aux switches, recommended options include:

Roof Light Bar Switched Harness - ORACLE Part #5897-504
TRIGGER 4 PLUS Controller - ORACLE Part #2100
TRIGGER 6 SHOOTER Controller - ORACLE Part #3001

Important: Avoid high-powered car washes with overhead brushes.

Warranty, Shipping & Returns ▼

1 Year Warranty Shipping Returns & Exchanges
